MAXECO 110V 160PSI High Pressure Diaphragm Water Pump - Self Priming 80GPH 5LPM Water Pressure Booster for Home, RV, Boat & Marine Use - Perfect for Misting Systems, Caravan Water Supply & Sprayer Applications

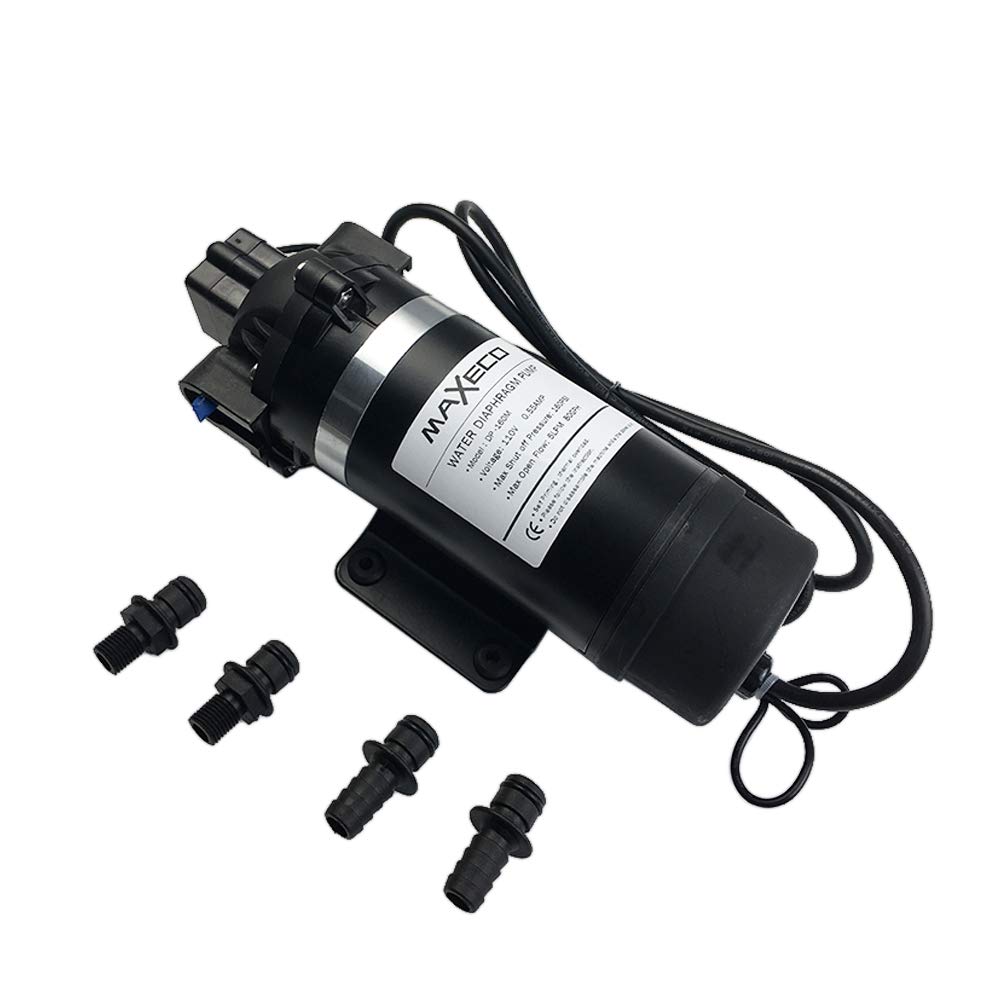

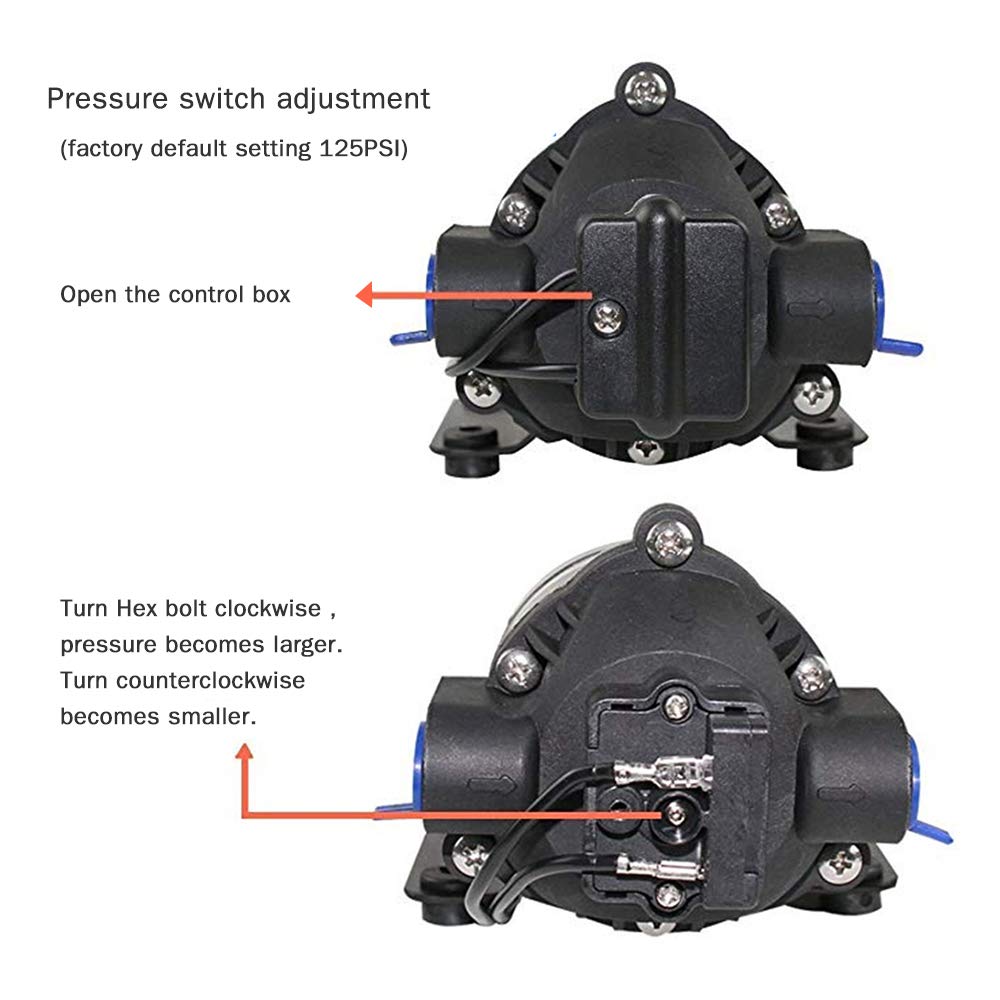

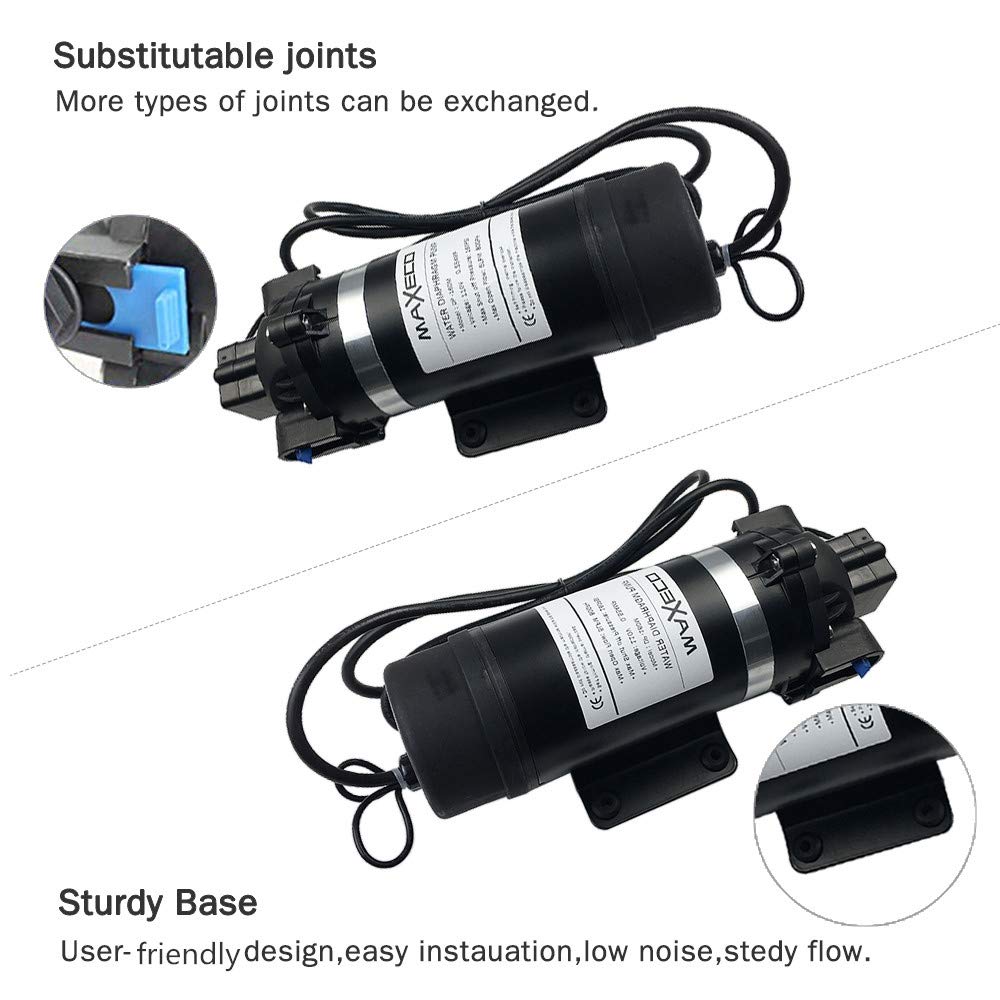

Product Description Specification: Voltage:AC110V /0.55AMP Max Shut off Pressure:160PSI Max Open Flow:5LPM /80GPH Max Liquid Temp: 140℉(60℃) Maximum lift: 95m Weight:2.7kg Interface aperture: 12.7mm Valve material: EPDM Diaphragm material: Rubber elastic material Protection Valve Type: intelligent valve （with Pressure switch） Medium:no oil, no strong corrosive, non-acid and alkali, no solid particles Package includes: ◆Water diaphragm pump ◆1/2"Pagoda-Type straight joint×2 ◆1/2"Thread-Type straight joint×2 Features: -Runs dry without damage. -Numerous fittings options for greater mounting flexibility. -Overload and overheating double protection system. -Light and small,low noise,high flow,sturdy base, energy efficient,steady operation. -Application:marine yachts, RVs, automobiles,household,industry, agricultural misting etc. Note: ▲Please clean it regularly in case of debris blockage. ▲Provide appropriate pressure adjustment to the switch. ▲Factory set pressure value for daily use is 125PSI. If needed, it can be adjusted to 160PSI. ▲If the pump shakes or vibrates at a high rate of frequency, please adjust the tap to discharge more water. ▲Never use a high pressure for your flow pump to fit a thin sprayer. Can not dry for extended periods of time. ▲Intermittent work. Built-in thermal protector.A single continuous work 60-90 minutes, cooling 15-20 minutes to work again. ▲Improve pressure may cause server overload or vibration. Keep the pressure value not too low, otherwise the device will start and stop frequently, which will cause motor damage. ▲Long time operation at small flow/leakage would damage pressure switch very quickly. Choose the correct pump according to system flow and pressure when you use it for same application.

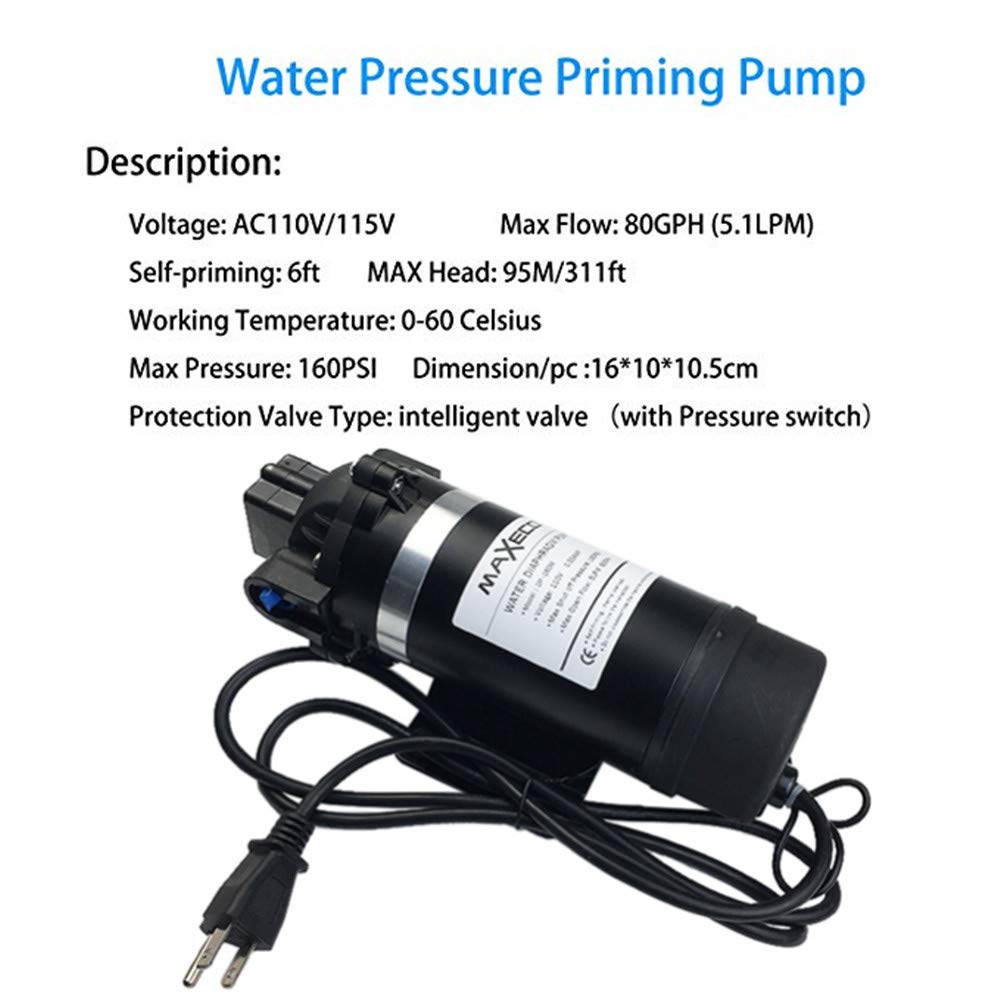

1.Technical Parameters Max Shut off Pressure-160PSI, Max Open Flow-5LPM /80GPH, Voltage-110V/0.55AMP, Maximum head-95m.

2. Self-priming 9 Feet Allows for usage even if located above water tank. Positive displacement diaphragm pump, capable of being run dry.

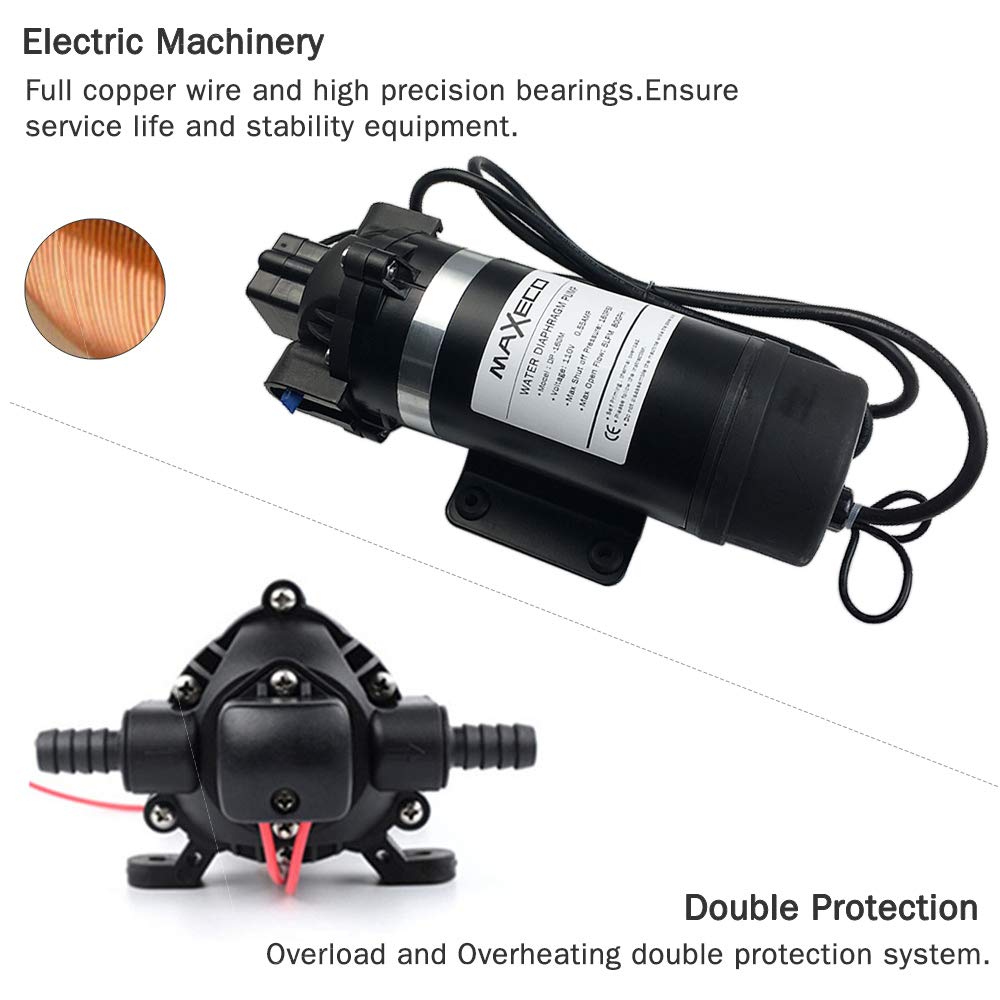

3. High Quality 100% full copper wire high-quality motor,long service life, no leakage, quiet operation. Changeable pressure switch. Spare parts supported.

4. Double Protection Sealed pressure switch automatically turns the pump off when pressure builds up.Built-in thermal protector.Thermal overload protection automatically stops motor should it overhear due to overload, with auto re-start feature.

5. ApplicationMarine yachts, RVs,automobiles,household,general industry, agricultural misting ,catering services,distillation equipment,boats, and vans.

****** - Verified Buyer

4.5

This pump can suck down a 5 gallon bucket pretty quickly, and has no trouble reaching 160 PSI on its output.For the self priming ability, I must not use the right size tubing (3/8 OD) for the 'self priming' abilities. I also admit I may not fully understand the concept of 'self priming'. All of the pumps I have purchased if there is a big enough bubble in the line, once that pocket of air reaches the diaphragm it will idle on it until it is forced out by other means. On this point, this pump was no worse or better than any others without manual priming assistance when there is a pocket of air in the line.For its durability, I have had this pump for a while now and have really pushed it hard. I have accidentally let it run dry for unknown amounts of time (Potentially hours) and the outside shell of the pump was sizzling hot. I was worried the pump would not work after that but it has not noticeably lost any power since when I first ran the pump.For its power, this pump has no trouble pumping up a pre-pressurized accumulator tank or boiler expansion tank (Room temperature inlet) up to its maximum working pressure ratings of 150 PSI. This was a killer upgrade for my misting system.For the pressure switch, it is decent enough for my purpose it just took a while to get it dialed in. My experience with this pressure switch that is built into the pump is probably unique. Unfortunately most of my fittings, hoses, and pipes between my reservoir, pump, tank, and misting nozzels have been 'what is laying around' and 'what I could find' and 'what fits together' at home and the local hardware stores. Coupled together with different parts at different heights, the fluid dynamics of my system don't currently like to agree at the pressure switch vs the pressure at the tank.Overall I rate this pump a 5 star product based on my experience with other pumps too.
