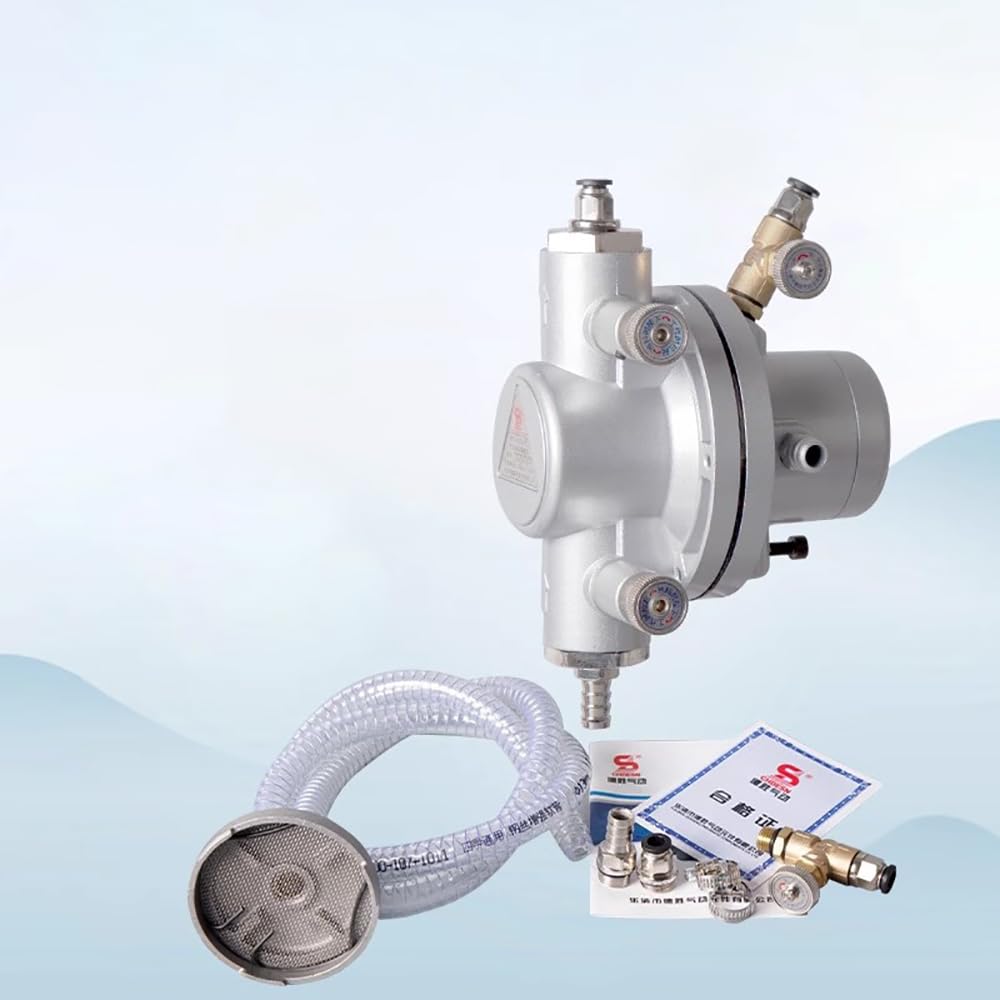

iDili Single Way Pneumatic Diaphragm Pump 15L/MIN - Air Operated Water Transfer Pump for Water-Based Ink Printing Machine, G3/8 Port, 0.2-0.5Mpa Pressure - Ideal for Industrial Printing, Liquid Transfer, and Chemical Handling Applications

Single Way Pneumatic Diaphragm Pump 15L/MIN for Water-based Ink Printing Machine G3/8 0.2-0.5MpaFeatures:1. Suitable for use in flammable and explosive environment,because it using air as powerand does not heat and produce sparks. 2. The PTFE diaphragm can be used for chemical properties relatively volatile liquid, corrosive medium. 3. Diaphragm Pump can pump particle liquid. 4. The liquid can be conveyed by diaphragm pump is wide, the viscosity from low to high, from corrosive liquid to viscous liquid. 5. Diaphragm Pump is small, light and easy to move. Specification:Product Name：Single Way Pneumatic Diaphragm Pump MODEL: BSD-HL-2002 Max flow: 15L/MIN Max suction：2M Using Air pressure range: 0.2-0.5Mpa(2-5bar) Outlet pressure: 0.5 Mpa (5bar) Pump body: Aluminum Alloy Diagram: Buna-N diaphragm/PTFE Teflon diaphragm optional Air inlet and outlet size: 9.53MM (3/8") Thread: BSPT Maximum Particle diameter: 2MM Net weight:1.8KG Packing size: 118x115x223MM Package weight: 3.0KG Package Included: 1 x Single Way Diaphragm Pump 1 x Set PU/PVC Feed Tube(1.2meter) and strainer 1 x Variable control valve 1 x Pagoda-Shape Connector 1 x 8MM Quick Connetcor 1 x Pipe hoops

1. Suitable for use in flammable and explosive environment,because it using air as powerand does not heat and produce sparks.

2. The PTFE diaphragm can be used for chemical properties relatively volatile liquid, corrosive medium.

3. Diaphragm Pump can pump particle liquid.

4. The liquid can be conveyed by diaphragm pump is wide, the viscosity from low to high, from corrosive liquid to viscous liquid.

5. Diaphragm Pump is small, light and easy to move.
