12V/24V 120W ZKS-KS Electric Diaphragm Water Pump - Self Priming High Pressure Pump for Car Wash, Garden Irrigation, Pesticide Spraying & Water Transfer | Ideal for Pressure Washers, Agricultural Sprayers & Outdoor Cleaning

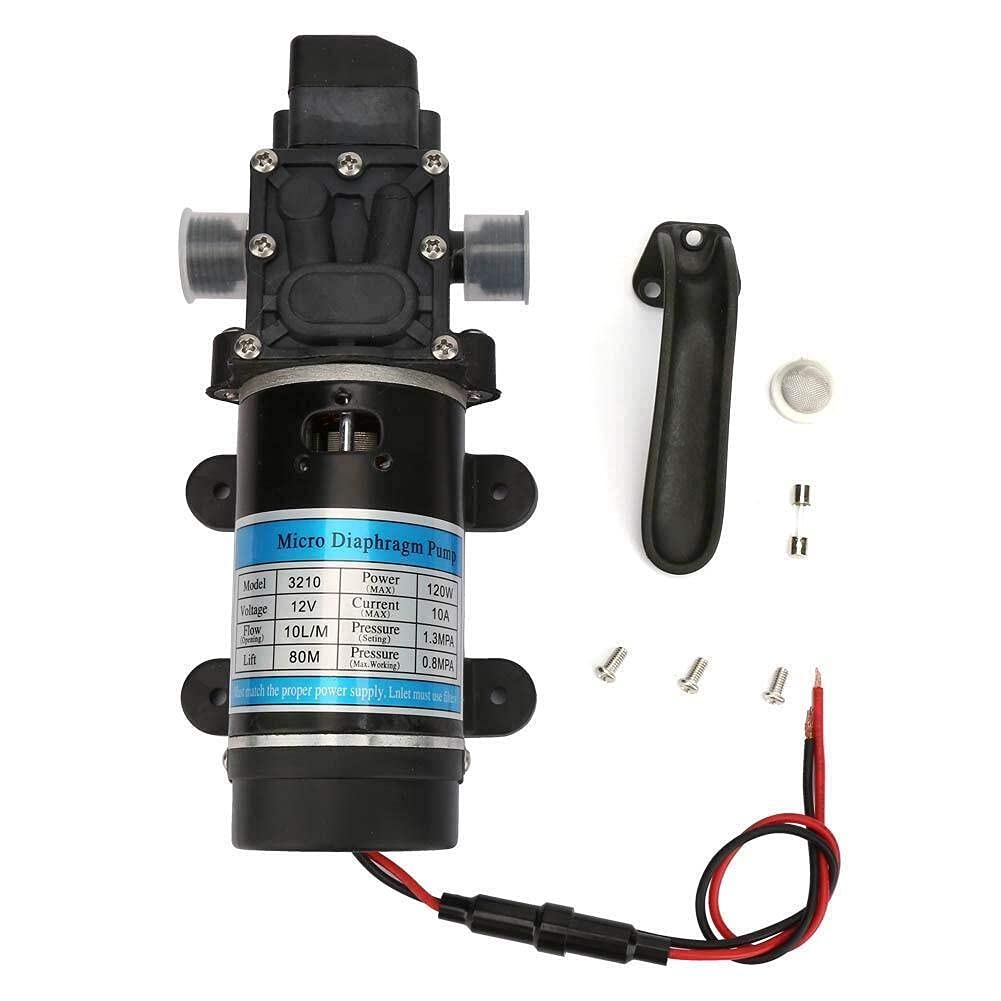

Specification:Voltage: 12V; 24V(Optional)Maximum power: 120WMaximum pressure: 13KGWorking pressure: 8GOpening flow: 10L/mVertical suction: 1.5mLift: 80mPackage list:1 * Pump1 * Filter net1 * Handle of pump3 * Installation screw1 * Spare fusesNote:The actual product color may deviate from the photo due to light.There may be a slight deviation in the measurement of product.Operation guide:1. Connect the pump to the inlet and outlet pipes. It must be ensured that the connection between the inlet and outlet pipes and the pump is tight, otherwise it will cause low pressure or water leakage. (Hint: there are arrows on the pump cover to indicate the direction of water in and out, and the direction of the arrow is the direction of water discharge)2. Install the filter at the inlet end, and the filter density is preferably above 80 mesh. (ie, 80 holes per square centimeter)3. Connect the micro diaphragm pump to the motor. The electrical parameters of the connected power supply must meet the input requirements of the motor.4. Turn on the power and the motor pump starts to run.5. The water is discharged for 5~10 seconds, drain the air in the pump and the pipeline. After the water is stable, temporarily turn off the power and connect the water gun or pump head.The products of our shop have many characteristics, you are welcome to visit our shop to visit other style products, if you have any questions, please feel free to ask questions, we will reply to your questions within 12 hours, I wish you a happy life.

♥ High quality intelligent motor: protected against pressure overload, pumping stop when the pressure is overload, automatically recovers when the pressure returns to normal.

♥ The products are widely used in: high pressure washers, water sprinklers, pesticide spraying, garden irrigation, filling machines and other equipment.

♥ Strong output power (120W), high (10L / m), maximum lift (80m).

♥ Corrosion resistance, antioxidant, solid construction. The product has stable and reliable and a long service life.
