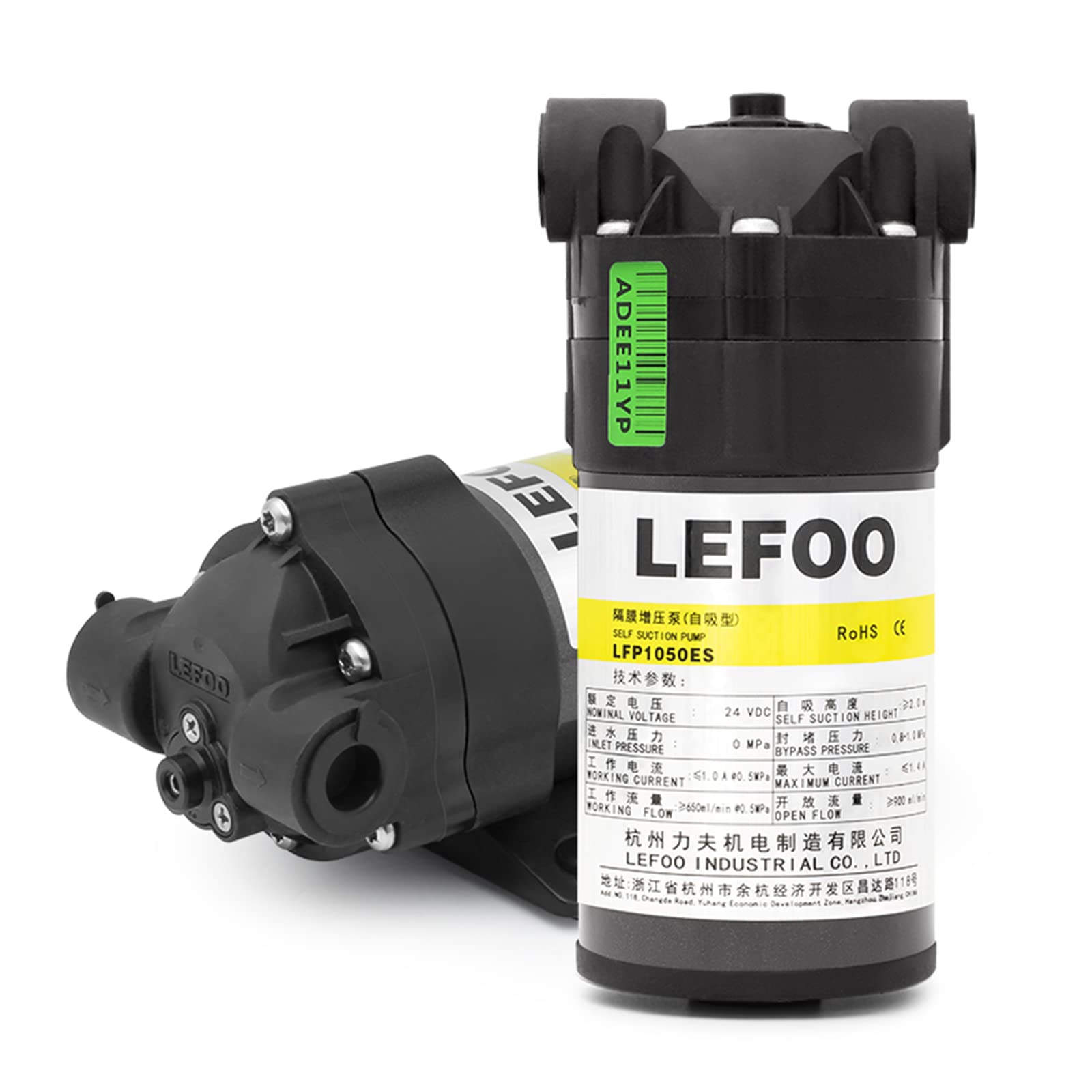

LEFOO 24V Self Priming Diaphragm Water Pump - 10.3GPH, 30 PSI, 6.56FT Suction - 3/8"NPT for RO Systems, Campers & Home Water Transfer | Ideal for Reverse Osmosis Filtration, RV Water Supply & Household Liquid Transfer

Optional Connectors 3/8"NPT 3/8"NPT"O" 1/4" Top female quick connector 1/4" Side female quick connector 1/4" Male quick connector Read more Model LFP1050ES Voltage 24V DC Inlet Pressure 0MPa Working Pressure 0.5MPa Working Current ≤1.0A Working Flow ≥650ml/min Open Flow ≥900ml/min Bypass Pressure 0.85~1.0MPa Maximum Current ≤1.4A Self Priming Height ≥2m (6.56FT) Connection 3/8"NPT; 3/8"NPT"O"; 1/4" Top female quick connector; 1/4" Side female quick connector; 1/4" Male quick connector. (function(f) {var _np=(window.P._namespace("AplusModule"));if(_np.guardFatal){_np.guardFatal(f)(_np);}else{f(_np);}}(function(P) { P.when('AplusModules-module-16-tech-specs').execute(function(resizeSpecTables) { resizeSpecTables('aplus-index-6', 'aplus-tech-spec-table', 'aplus-tech-spec-hide-loading'); }); }));

Self-priming height of our self priming diaphragm pump is greater than or equal to 6.56 FT. Our pump have certified to CE, RoHS and CQC, stable and durable, super quiet, thermally protected and can run dry without damage.

Our 50GPD diaphragm booster pump: Flow(under 5Bar) : 0.65L/Min; Intake Water Pressure: 0Mpa; Rated Pressure: 0.5Mpa; Water pipe interface: 5 types optional; Small Size: Approx. 15.5 x 10 x 8cm (6.1 x 3.8 x 3.1in) (L*W*H)

Our self priming diaphragm pump equipped with strong impetus DC motor with low vibration. Our pump equipped with anti-vibration iron plate mounting bracket and rubber feet, which can reduce the working noise more greatly.

Our self priming pressure booster pump is the nemesis of low water pressure. Can be used in all equipment which need to strengthen the water pressure, such as Soda Dispenser, Carbonated Sparkling Water Makers, beverage delivery, Misting system, plant irrigation and so on. Also great for use in kitchen and bathroom.

NOTE: To avoid leakage to the pump rotor in case of some product failure, the correct operation is to put the pump head down or flat during when installation.
